Description
Application :
- For front and top actuation optional

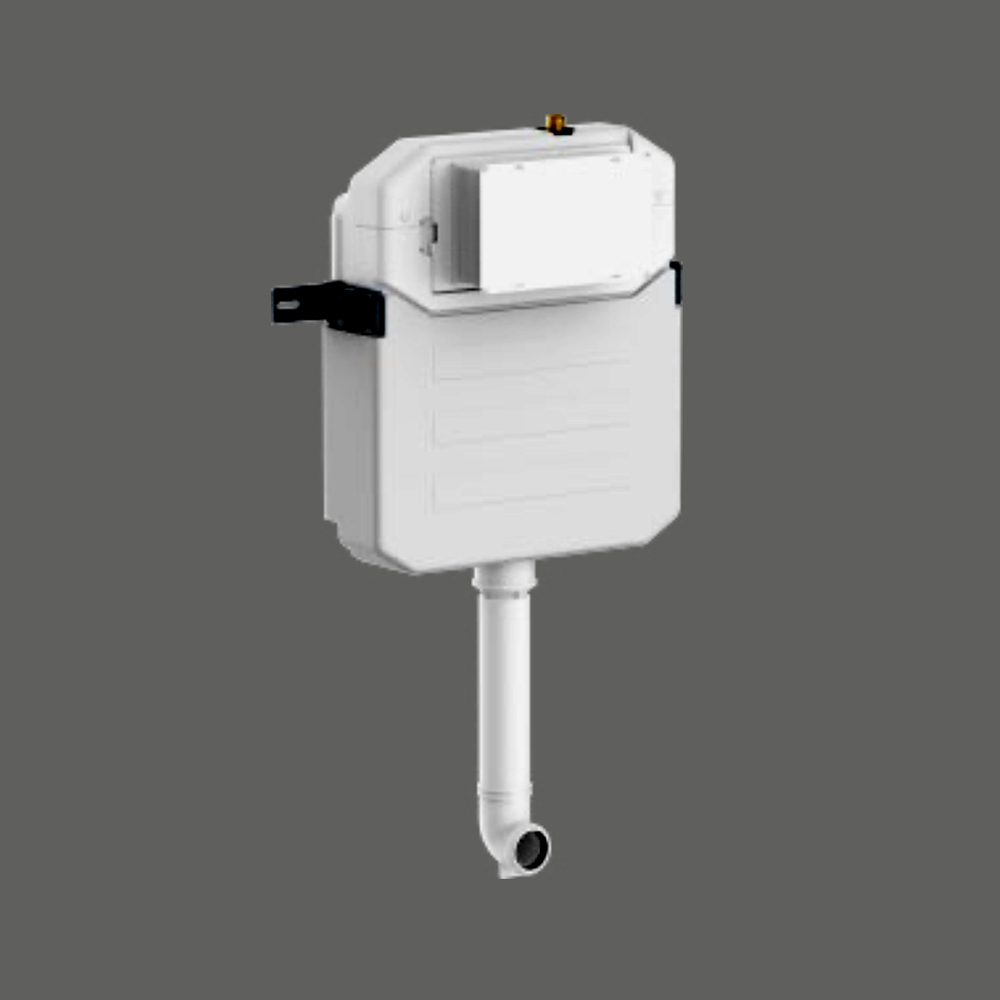

- Concealed cistern
Characteristics :
- Thickness of cistern 115mm
- Can fit with all actuator plate in this catalogue
- Covered by foam, the surface of the concealed cistern is prevented from condensation
- 6/3L, 4.5/3L adjustable
- Optional location of the water supply pipe(top/back)
- Can be modified into pneumatic version cistern
- Feet height infinitely adjustable 0-150mm
- Block holder is optional
Scope of delivery :
- Water supply angle valve
- Flush pipe
- Protection box for maintenance window
- Excluded: actuator plate
- Installation plug
Flush Volume :
4.5L/3L
6L/3L
